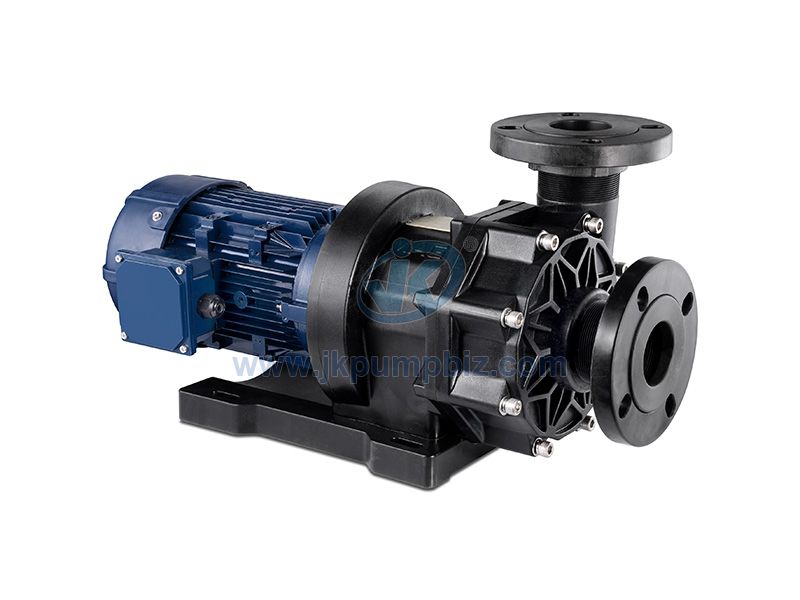

Small magnetic drive pump-JM

Share

Light & small magnetic drive pump-JM(MP) series;

The material of pump body:FRPP/CFRPP/PVDF;

Motor power:10w~260w;

Max.Head:2~8.8m;

Max.Flow:11~7.2 m3/h;

Application:  Chemical Transfer, Plating, Etching, Wastewater and more;

Certification: ISO9001:2015,CE certification,Production&sales intellectual property management system certification;


  • Product Description
  • Specifications
  • Features
  • Application

MODEL INDENTIFICATION:

 MP  -  F  -  20  -  45  -  C  -  C  -  V  -  3  -  5

 1          2        3         4       5        6       7      8       9


1MODELMP/JM
2MATERIALF - FRPP     P- PVDF       C-CFRPP
3IN/OUTLET20-20*20  25-25*25
4POWER10-10W  20-20W  45-45W  65-65W  12-120W  26-260W
5SPINDLEC- CERAMIC
6BEARINGC-CARBON   S-SIC
7RUBBERN- NBR   E- EPDM  V- VITON
8VOLTAGE1 -110V   2 -220V/240V  3 -220V/380V  4 -SPECIAL
9FERQUENCY5 -50HZ   6 -60HZ



What is a MP series magnetic drive pump?

1.The MP series magnetic circulating pump is equipped with magnetic materials on the connecting shaft and the impeller respectively to attract and couple each other.

It does not need to be equipped with a traditional mechanical shaft seal; It is a new type of circulating pump.

There are many models of MPmagnetic transfer pumps, from extremely small to large, which are suitable for various industrial systems and programs. Its reliable performance and superior performance enjoy a high reputation.

The magnetic drive circulating pump is designed without shaft seal, which completely avoids the defect of corrosion after corrosion caused by liquid leakage in traditional mechanical shaft seal pumps.

 It is the most ideal liquid transfer pump for industrial equipment.

Application:

The Mp series magnetic pump is a small magnetic pump, widely used in electroplating, coating, sewage treatment, electrophoresis zhi paint, pearl nickel plating, chemical industry, metal industry, pollution control with small filter mainly involves continuous plating, electroplating, painting Sewage treatment, dosing of acid and alkali, circulation, etc It is used for the transportation of acid and alkali media with no leakage characteristics.

1: Electroplating industry: circulating filtration of various electroplating solutions.

2: Etching of circuit boards, transporting chemical liquids during semiconductor production.

3: Water treatment: cleaning ion exchange resin, pure water production equipment.

4: Pollution control: Add sewage treatment chemicals to the liquid tank, collect and transport waste liquid, and waste gas absorption equipment.

5: Metal industry: Alumina film processing equipment, wire drawing, degreasing and pickling in steel rolling: degreasing and washing treatment before vehicle painting, production of titanium oxide, rare earth elements, etc.

6: Chemical industry: Sodium carbonate chemical industry, chemical fertilizer production, gas absorption tower reaction liquid circulation, oil refining (sulfuric acid), waste acid recovery and reuse system, strong acid transportation between chemical plants and transportation vehicles.

What are the advantages:

1. Outstanding Acid /Alkaline resistance capability:3 types of pump body material : FRPP,CFRPP,PVDF;

FRPP material can resist temperature up to 75℃,

PVDF material can resist temperature up to 90℃;

2. Due to the unique of bearing ,while the pump operating is closed;

3. Corrosion resisting:

The parts of the pump spindle can be made from ceramic and SIC;

The ceramic spindle is generally applied for low corrosion liquid;

The SIC spindle is excellent for high corrosion liquid;

4. Impeller and magnet capsule, although the pump dry-run, the temperature wont rise up tremendously to avoid pump damaged

5. The motor is equipped with temperature protection which avoids motor damaged due to high temperature caused by overload;

We have different motor brands of supply for your needs, for example“QUCHI,TECO,ABB”;

6.The magnetic drive sealless pump MP series are highly recommeded for use in various production processes,such as filtering, PCB,spraying,washing,plating,chemical transfer / blending and etching in surface treatment applications;

7.Can be used with chemical filter housing;

8.All products are manufacturer in accordance with ISO9001:2015 production standard to assure best quality and are complier with CE certificate,Production&sales intellectual property management system certification;





NEW MODELOLD MODELFlange / Thread50HZ60HZPOWER(KW)
IN/OUTLET(mm)Max. Head(m)Max.Capacity(m3/h)Max.Head(m)Max.Capacity(m3/h)
JM-2010MP-10RM20*2021.13.31.50.01
JM-2020MP-20RM20*2031.651.70.02
JM-2045mp-30RM20*203.81.95.12.30.045
JM-2065MP-40RM20*204.52.76.83.20.065
IM-25120MP-55RM25*255.63.68.140.12
JM-25150MP-70RM25*256.95.19.45.90.15
JM-25260MP-100RM25*258.87.213.77.20.26

Performance Curve:


Magnetic Drive Pump-JM

Dimension :

Magnetic Drive Pump-JM

Magnetic Drive Pump-JM

Magnetic Drive Pump-JM

ItemDescriptionMaterialItemDescriptionMaterial
1Front casingFRPP/PVDF3SpindleCERAMIC
1-1BearingCFRPP/SIC4Rear CasingFRPP/CFRPP/PVDF
1-2O-ringEPDM/VITON5Retainer RingSUS304
2ImpellerFRPP/CFRPP/PVDF6O-ringEPDM/VITON
2-1Mouth RingSIC7Drive MagneticND-FE-B
2-2BearingCARBON/SIC8MotorFC/AL





Magnetic drive pump MP(JM) series Features:

1. Outstanding Acid /Alkaline resistance capability:

3 types of pump body material : FRPP,CFRPP,PVDF;

FRPP material can resist temperature up to 75℃,

PVDF material can resist temperature up to 90℃;

2. Due to the unique of bearing ,while the pump operating is closed;

3. Corrosion resisting:

The parts of the pump spindle can be made from ceramic and SIC;

The ceramic spindle is generally applied for low corrosion liquid;

The SIC spindle is excellent for high corrosion liquid;

4. Impeller and magnet capsule, although the pump dry-run, the temperature wont rise up tremendously to avoid pump damaged

5. The motor is equipped with temperature protection which avoids motor damaged due to high temperature caused by overload;

We have different motor brands of supply for your needs, for example“QUCHI,TECO,ABB”;

6.The magnetic drive sealless pump MP series are highly recommeded for use in various production processes,such as filtering, PCB,spraying,washing,plating,chemical transfer / blending and etching in surface treatment applications;

7.Can be used with chemical filter housing;

8.All products are manufacturer in accordance with ISO9001:2015 production standard to assure best quality and are complier with CE certificate,Production&sales intellectual property management system certification;




The magnetic drive sealless pump MP series are highly recommeded for use in various production processes,such as filtering, PCB,spraying,washing,plating,chemical transfer / blending ,and etching in surface treatment applications;
