MODEL INDENTIFICATION：
JKD-D - 40 - SK - 3 - 5 - V - P - Ti
1 2 3 4 5 6 7 8 9
| 1 | MODEL | JKD-D |
| 2 | IN/OUTLET | 40-40*40 mm |
| 3 | SPECIFIC GRAVITY | SK-1.1 |
| 4 | POWER | 3-3HP 6-6HP 7.5-7.5HP |
| 5 | FREQUENCY | 5-50HZ 6-60HZ |
| 6 | O-RING | E-EPDM V-VITON |
| 7 | MATERIAL | P-PP |
| 8 | SHAFT MATERIAL | 4-SUS304 6-SUS316 Ti-Ti |
SPECIFICATIONS:
| MODEL | SPEC | SG | IN/OUT | POWER(KW) | POLE | 50HZ | 60HZ | ||
| HEAD(m) | FLOW(L/min) | HEAD(m) | FLOW(L/min) | ||||||
| JKH-D | 40SK-3 | 1:1 | 50*40 | 2.2 | 2 | 24 | 417 | 28 | 420 |
| JKH-D | 40SK-6 | 1:1 | 50*40 | 4.5 | 2 | 34.8 | 490 | 40 | 490 |
| JKH-D | 40SK-7.5 | 1:1 | 50*40 | 5.5 | 2 | 34.6 | 790 | 39.5 | 790 |
Dimension:

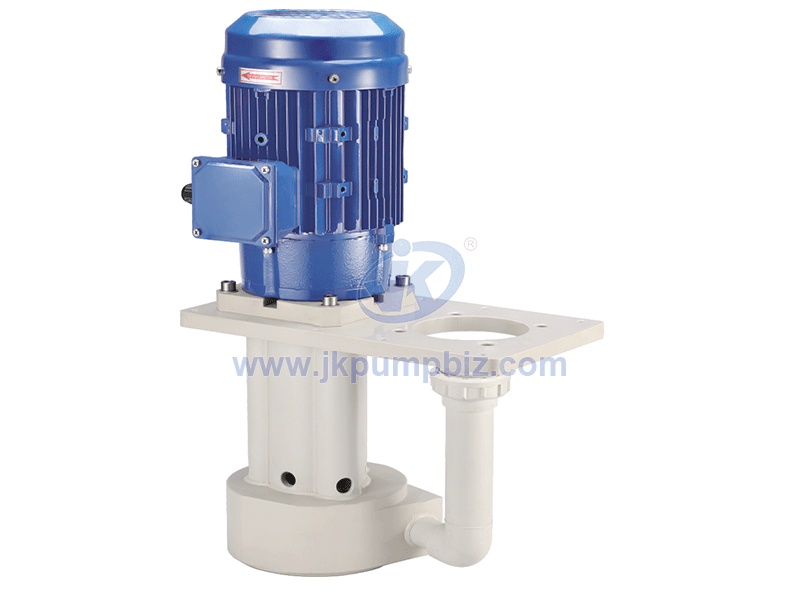

1. JKD-D series large vertical circulating water pumps is manufactured from higher grade raw material is PP;
2. Strong embed impeller with innovative water retaining cover,Higher head,larger flow,made the pump high efficiency-low operating cost;
3. Vertical pumps are suitable for installations with pump immersed directly in the tank;
4.The motor shaft is designed and install from internally (no extension, no joint) to ensure stability and better performance as well to enable the motor to have longer lifespan;
5.For corrosive environment, it is recommended to use Titanium bolt and nuts and Epoxy paint on motor body to prolong motor lifespan;different brands motor of choice to your needs,for example:QUCHI,TECO ;
6.Vertical acid and alkaline resistant pump:JKD-D series widely used in chemical or water recirculation,etching,spraying,etc;
7.The pumps is designed and developed by JK ,and has obtained related patent certificates,ISO9001:2015,CE certification;
8.1 year warranty;
Application: Environmental protection water treatment, surface treatment, printed circuit board, continuous electroplating, LED, solar energy, semiconductor, chemical, petro chemical and other industries;
